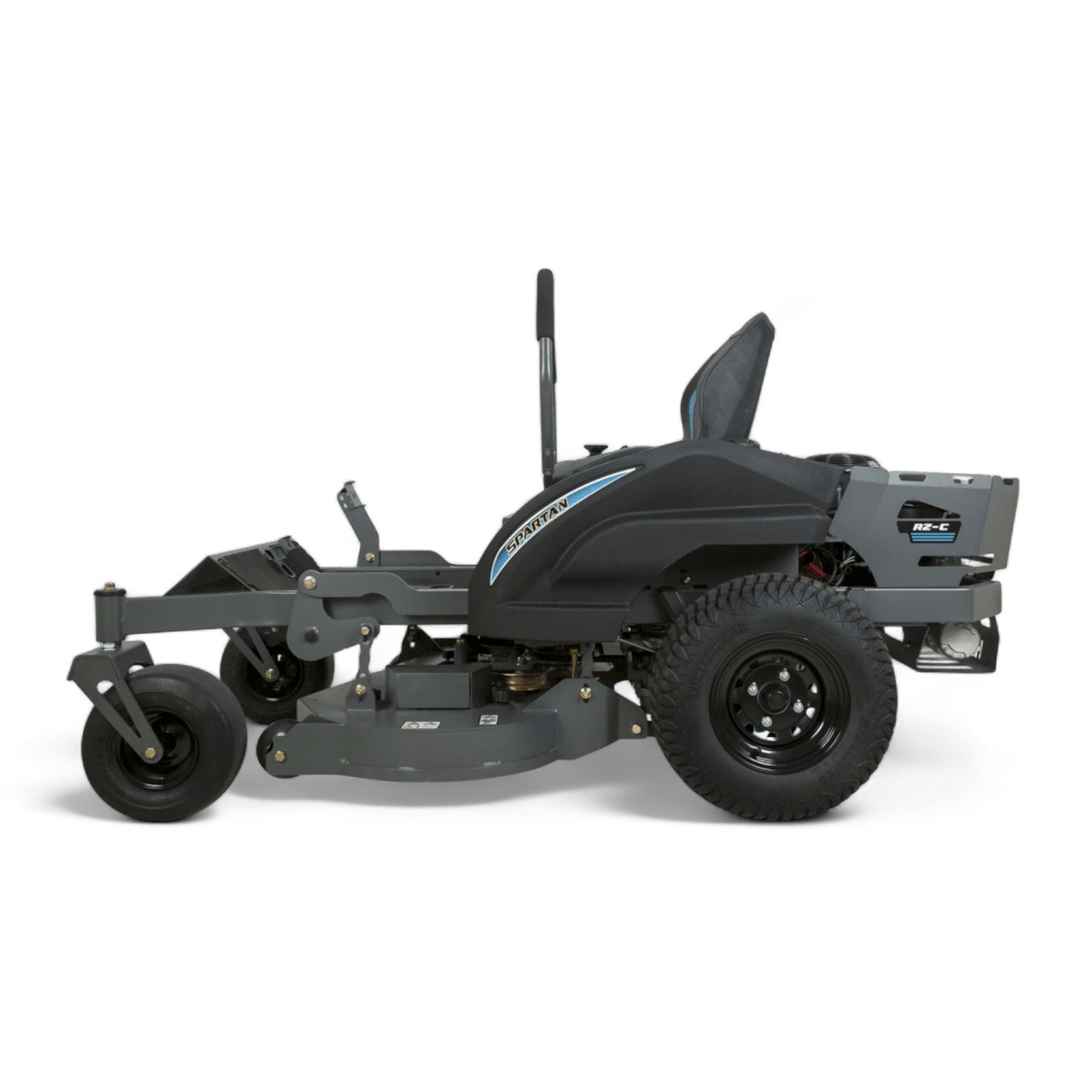

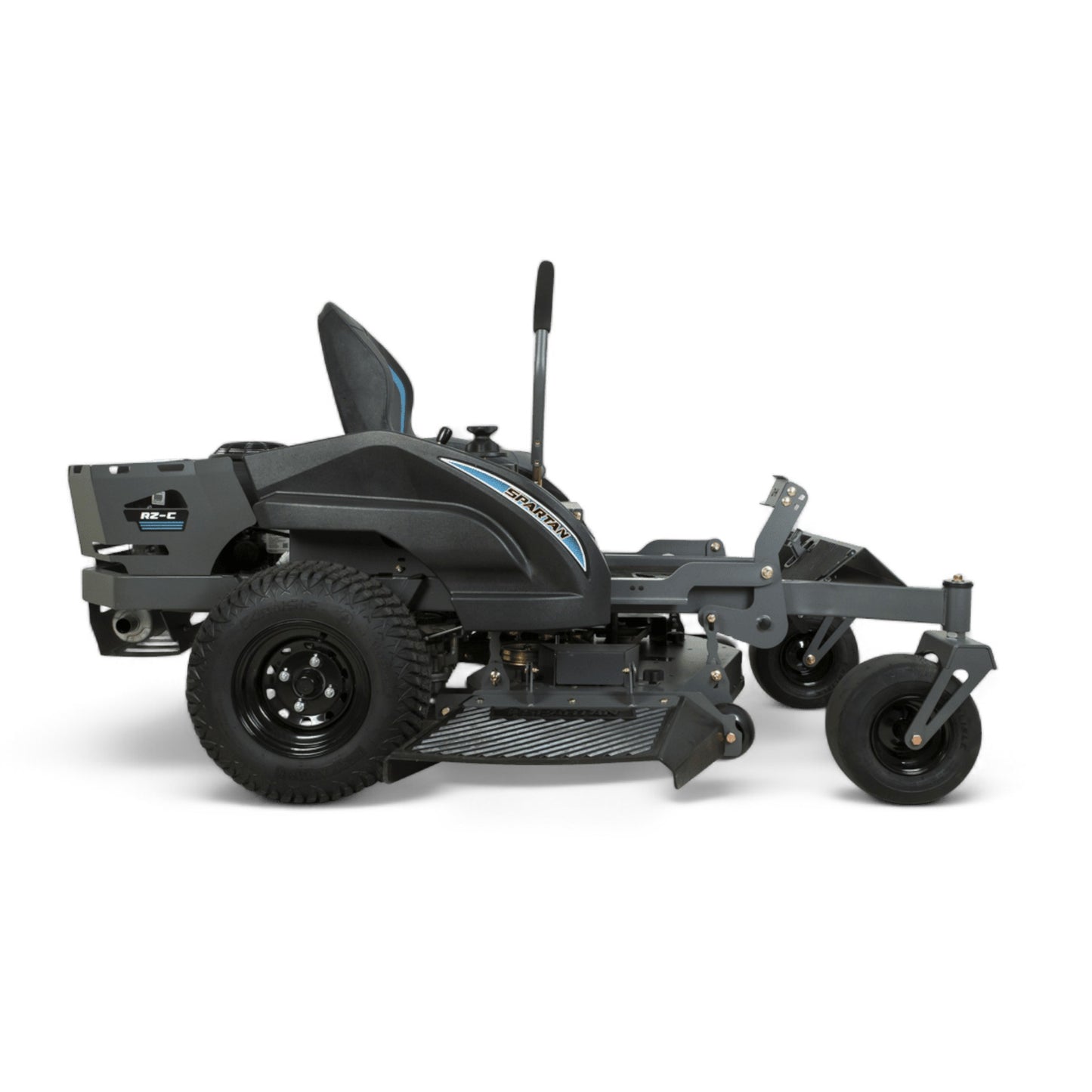

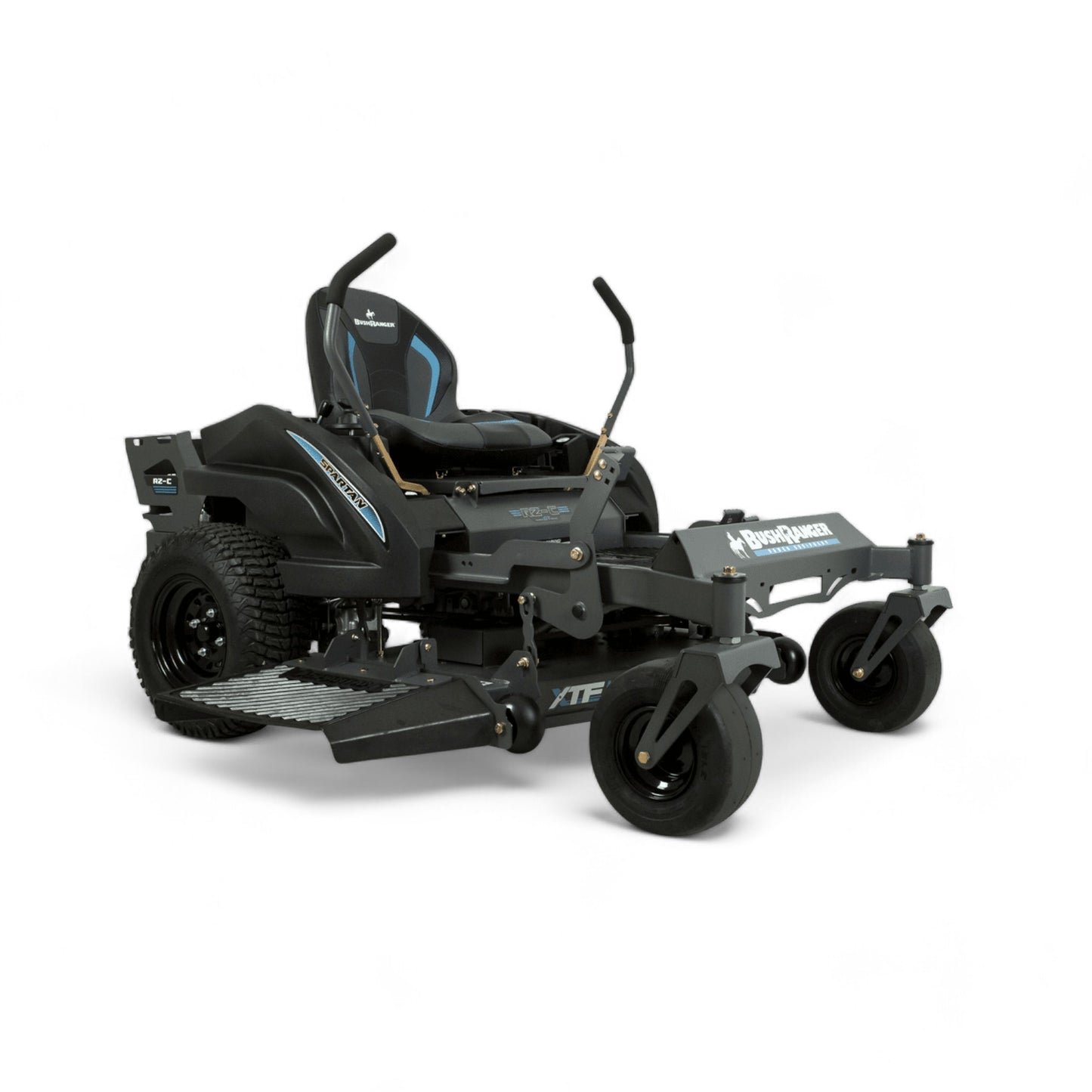

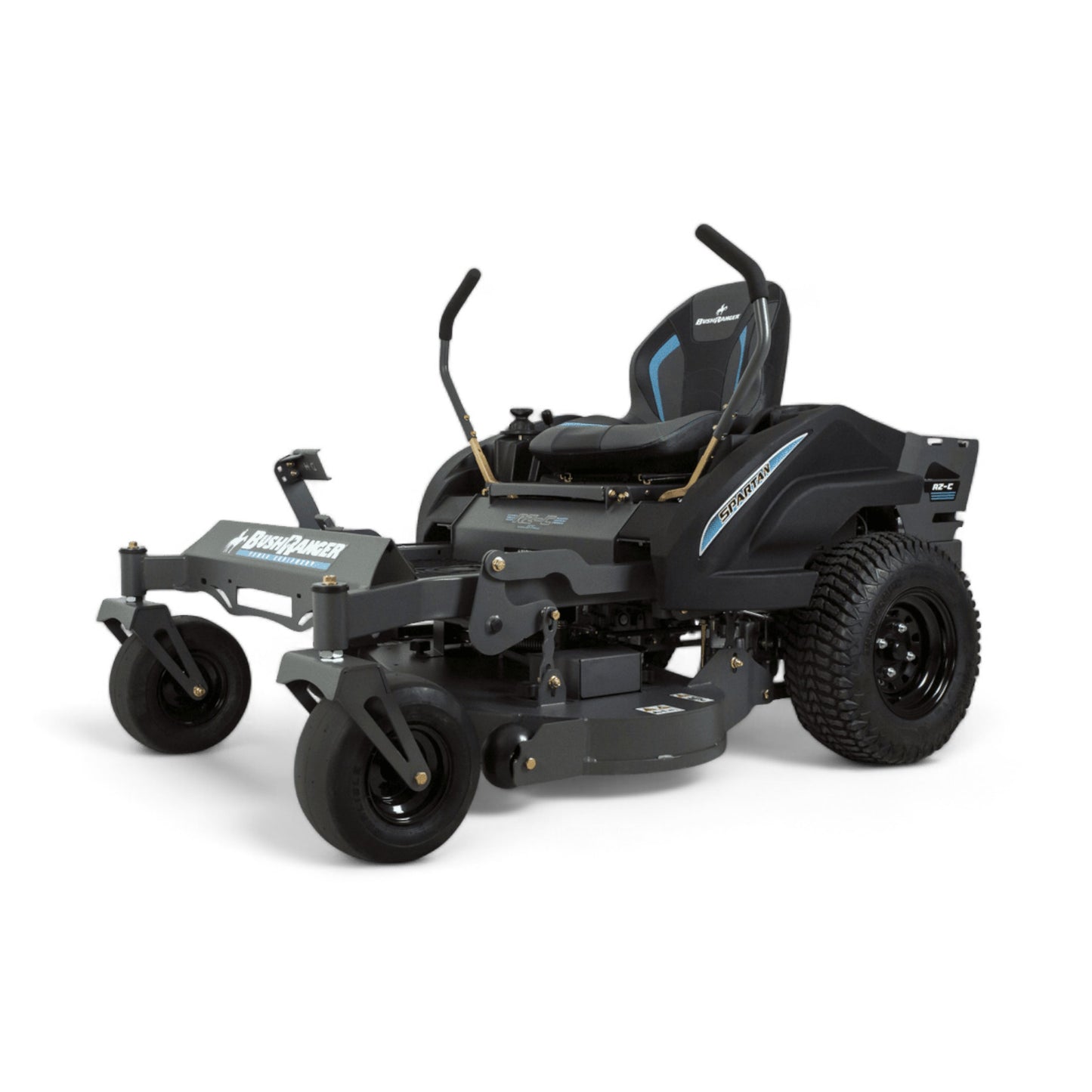

Spartan RZ-C 42" Zero Turn Mower

THE RZ-C 42" IS THE SMALLEST UNIT IN THE SPARTAN LINE UP, BUT MAKE NO MISTAKE THIS COMPACT SOLUTION DELIVERS BIG RESULTS!

DETAILS

The RZ-C is our newest compact solution with BIG results. Manufactured with the same fusion welded tube frame as our bigger zero turns, the RZ-C has the same durability with a lower starting price! The Bushranger RZ-C eats up lawns of all sizes and comes packed with premium features that are all included as standard, and truly make the Bushranger RZ-C stand out from the rest. Features like the bullet proof Kawasaki FR651V V-Twin engine (usually reserved for commercial mowers), safety features like the GT Trac for the best traction on inclines, the easy touch brake system, the foot assist easy-lift deck, an ergonomic cockpit and huge fuel tanks will have you happily and safely mowing for hours without having to stop until the jobs done. All Spartan Mowers have an Xtreme Turf Flow (XTF) deck fabricated from 7 gauge steel, not just the top end models. Check out the competition and see the difference for yourself. No light duty decks here! This enhanced deck system comes standard on ALL models and the RZ-C is fitted with a 4" deep version of the deck which allows it to manoeuvre easily in tight spaces. The Bushranger RZ-C series ZTR’S are built and perform like a commercial grade mower but at an affordable price.

FEATURES

Kawasaki FR651V premium and commercial grade V-Twin engine.

TUFF TORQ 300 series serviceable transaxles.

Ground Speed Infinitely variable up to 0-12.9 kph.

GT-Trac for precision traction, balance and control on inclines.

18.9 litres fuel capacity.

Ogura electric PTO Clutch.

Fabricated heavy-duty 1.5" x 3" fusion welded tube frame.

Front caster forks are fabricated using 17/64" steel

Heavy-duty fabricated steel, 4” deep deck.

Cast aluminium 1" shaft with twin double sealed bearings.

Long lasting deck belts are designed with large idler pulleys to minimize wear.

ZTR is perfectly balanced with low centre of gravity.

Foot operated parking brake.

Control panel with LCD display, which contains at the push of a button a tachometer, engine hour meter, mowing hours meter, battery voltage, a countdown timer for engine oil replacement and a clock.

Keyless starting - Push-start keypad, featuring a personalised code to start.

12v outlet with plug and play wiring system.

Cup holder.

Mid-back bolstered seat.

Easy access for servicing with a removable floorpan.

Rubber floor mat.

20" drive tyres (New - Carlisle turf armour tyres).

13" front caster tyres.

Solid anti-scalping wheels with grease nipples on deck.

SPECIFICATIONS

All specifications are subject to change without notice.

Domestic Warranty

3 Years or 300 Hours

Commercial Warranty

3 Years or 300 Hours

Hire/Rental Warranty

No Hire / Rental Warranty

Engine

Kawasaki FR651V

Horsepower

21.5 hp (16.0 kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards)

Fuel Capacity

18.9 Litres

Dry Weight

317.1 kg

Fuel

Unleaded fuel - maximum of 10% ethanol in fuel

Drive System

Dual hydrostatic TUFF TORQ 300 series transaxles

Ground Speed - Forward

Infinitely variable up to 0-12.9 kph

Brakes

Foot-operated parking brake

Caster Tyres

13 x 6.50- 6, smooth tread

Tyres - Drive

20" Carlisle turf armour tyres

Seat

Mid-back bolstered seat

Hour Meter

Standard

Height

46" (1168.4 mm)

Deck System

Side-Discharge: 42" (1067 mm) cut. (2) Blades, Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain

Cutting Widths

42" (1067 mm) cut side discharge

Deck Lift

Foot operated / shock assist

Deck Construction

4” Deep, Fabricated 7 Gauge with 7 gauge spindle mounts and 9/16" impact bar

Cutting Height(s)

1” to 4.5" (25.4 mm to 114.3 mm)

Blade(s)

2

Discharge Chute

High density, rubberised

Length

82" (2082.8 mm)
